If you wish to remove more than one building from a navigation tree, repeat the instructions in step 5-7 below.
To remove a building from a navigation tree:
Open a navigation tree. For more information on how to do so, see section 5.4.1.

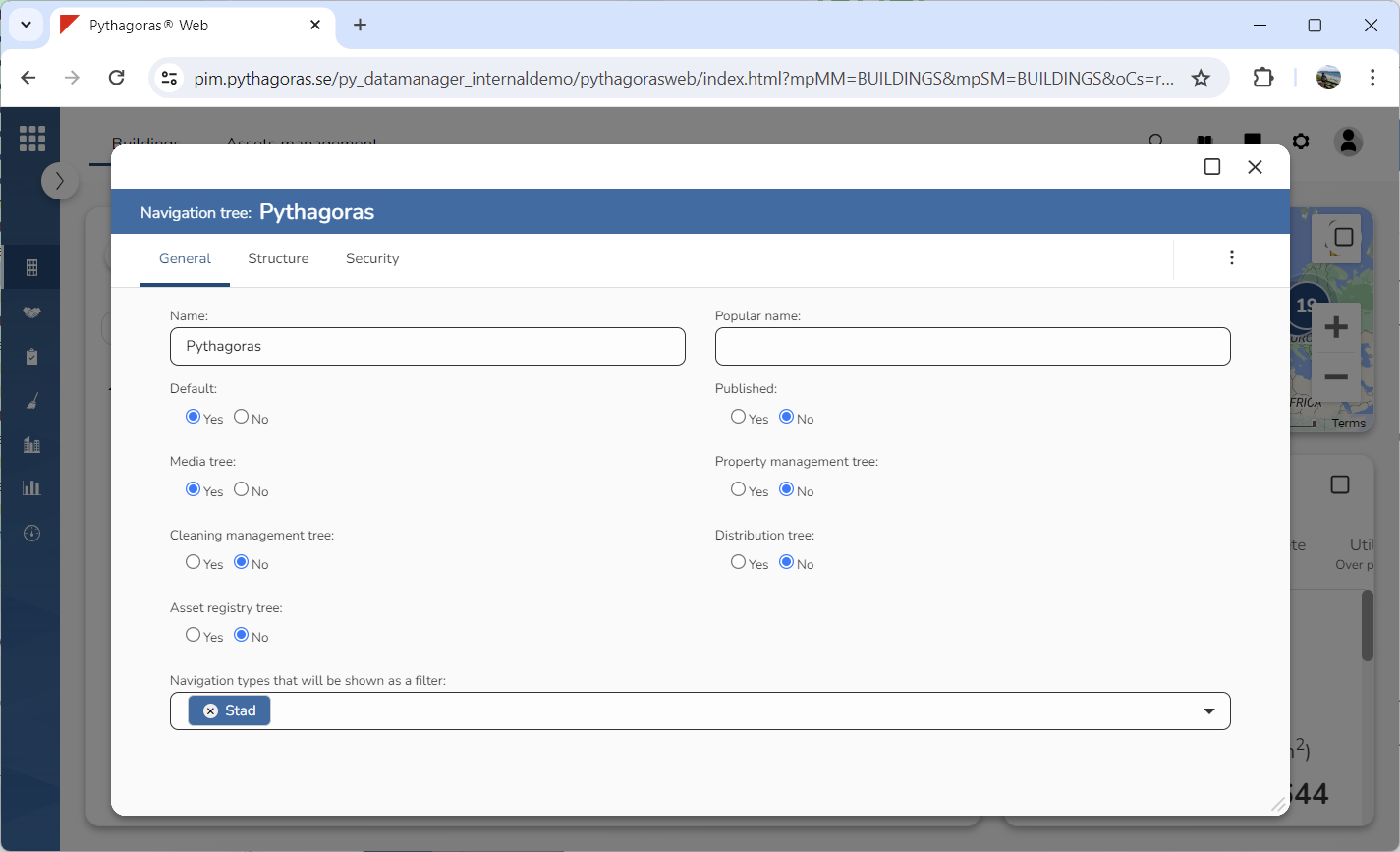

Go to the navigation tree card (see image below).

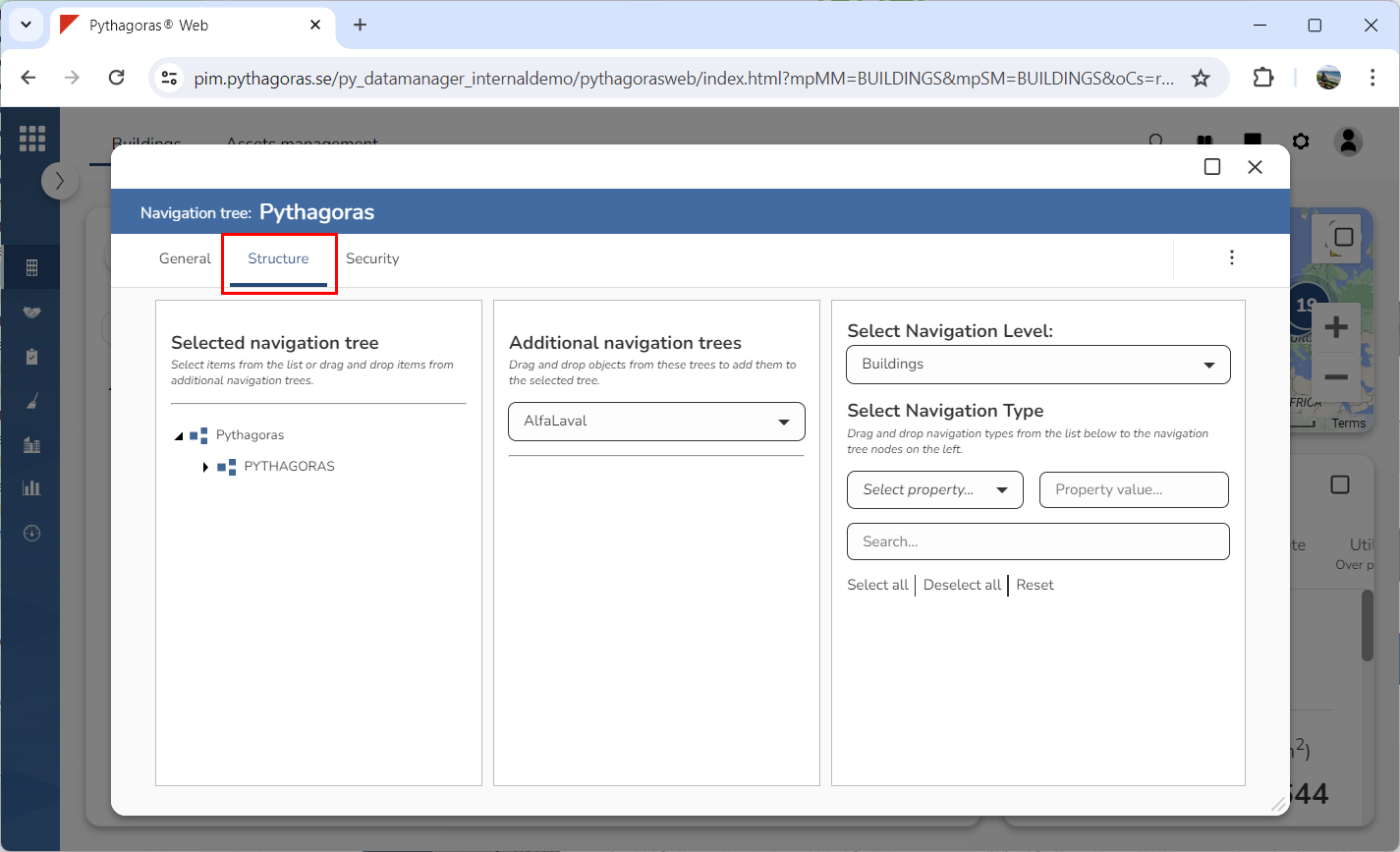

Click the tab called "Structure" (see image below). Clicking the tab called "Structure" will give you access to three columns: "Selected Navigation Tree", "Additional Navigation Trees" and "Select Navigation Level".

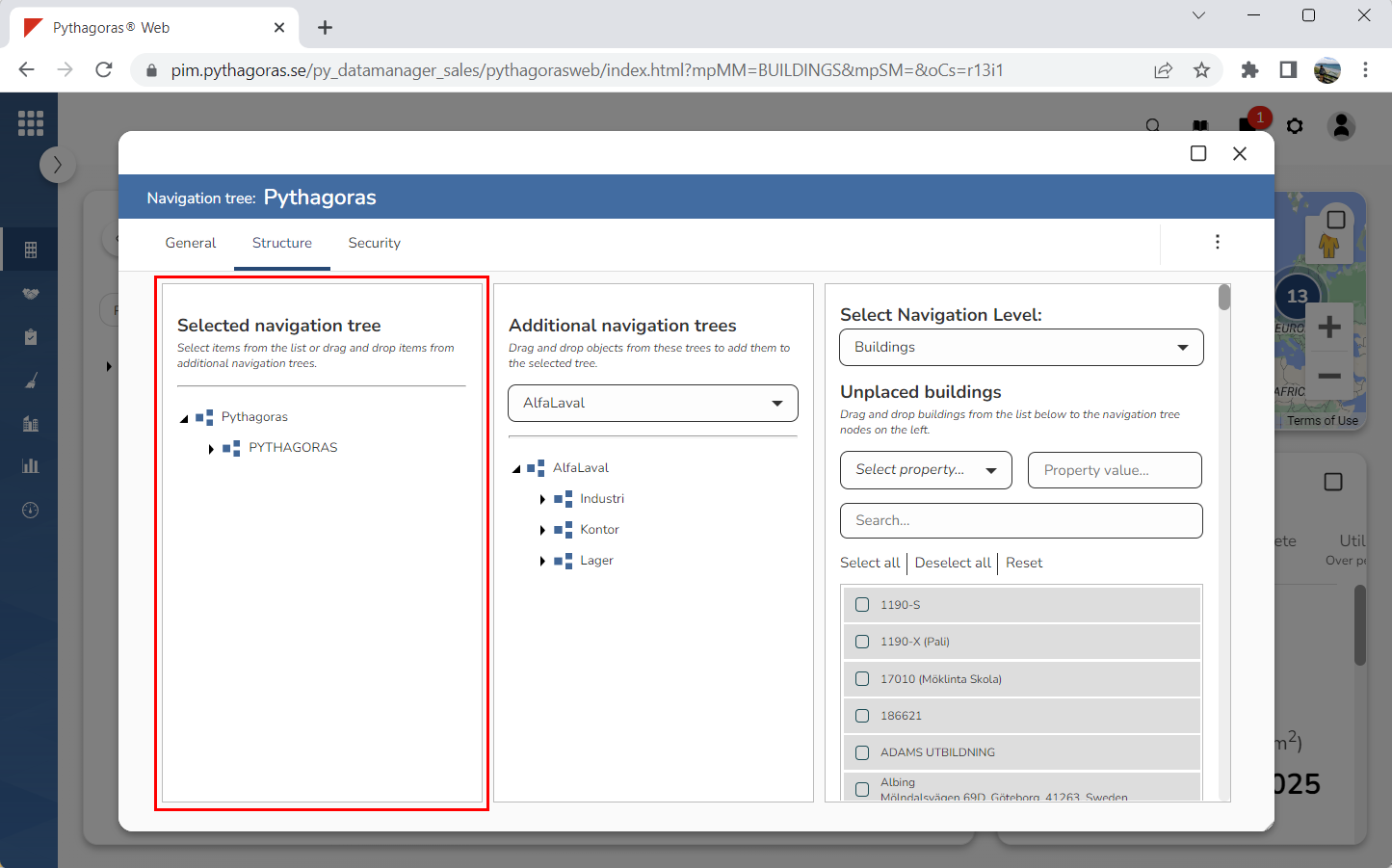

Go to the column called "Selected Navigation Tree". In the column called "Selected navigation tree" you will find the navigation tree you are working with (see image below).

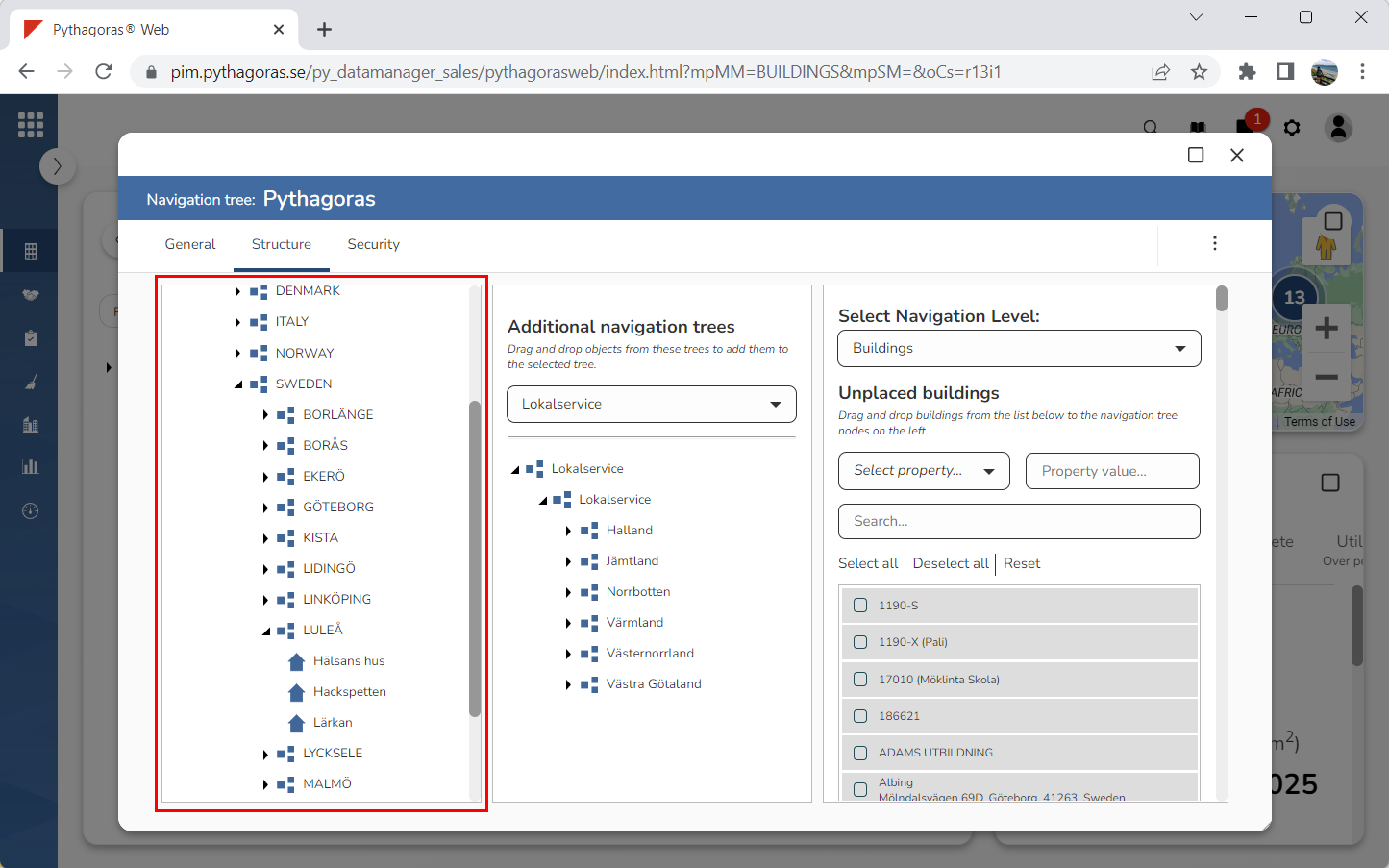

Make sure the building you wish to remove from the navigation tree you are working with is visible in the navigation tree by working your way down the navigation tree structure (see image below).

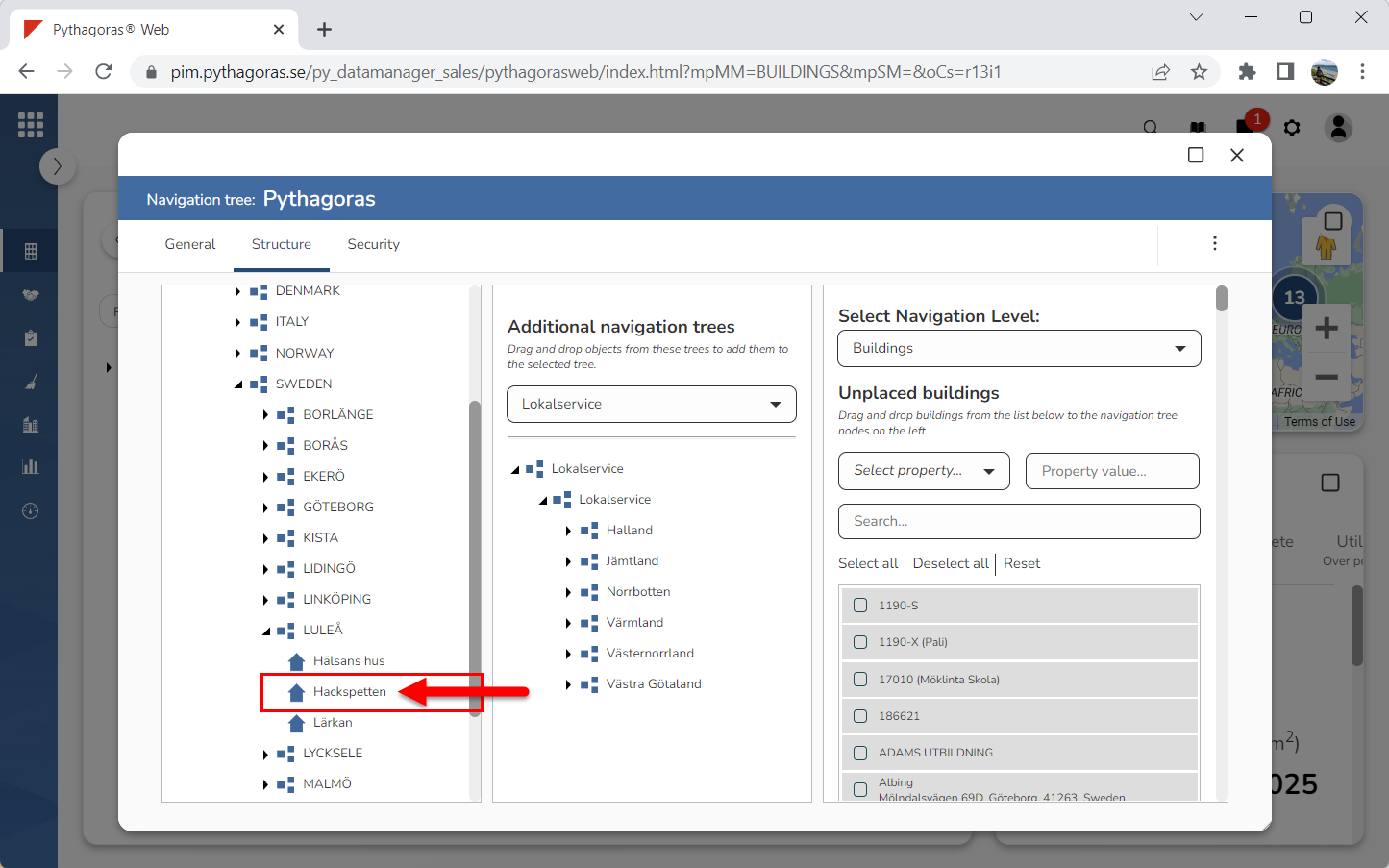

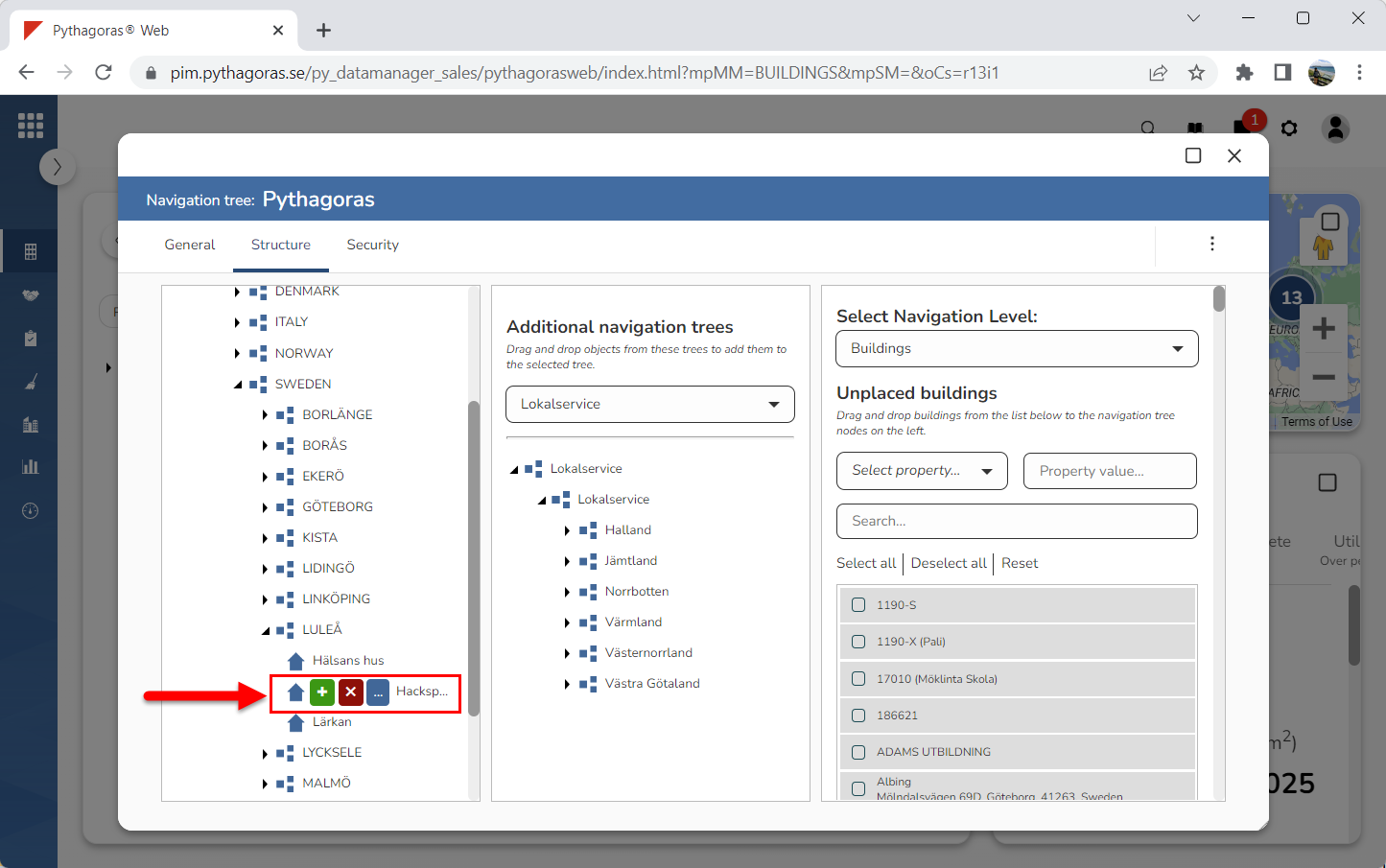

Place your cursor on the building you wish to remove from the navigation tree you are working with (see the first image below). When you place your cursor on a building you will be shown three icons: "Add object", "Delete" and "Open" (see the second image below).

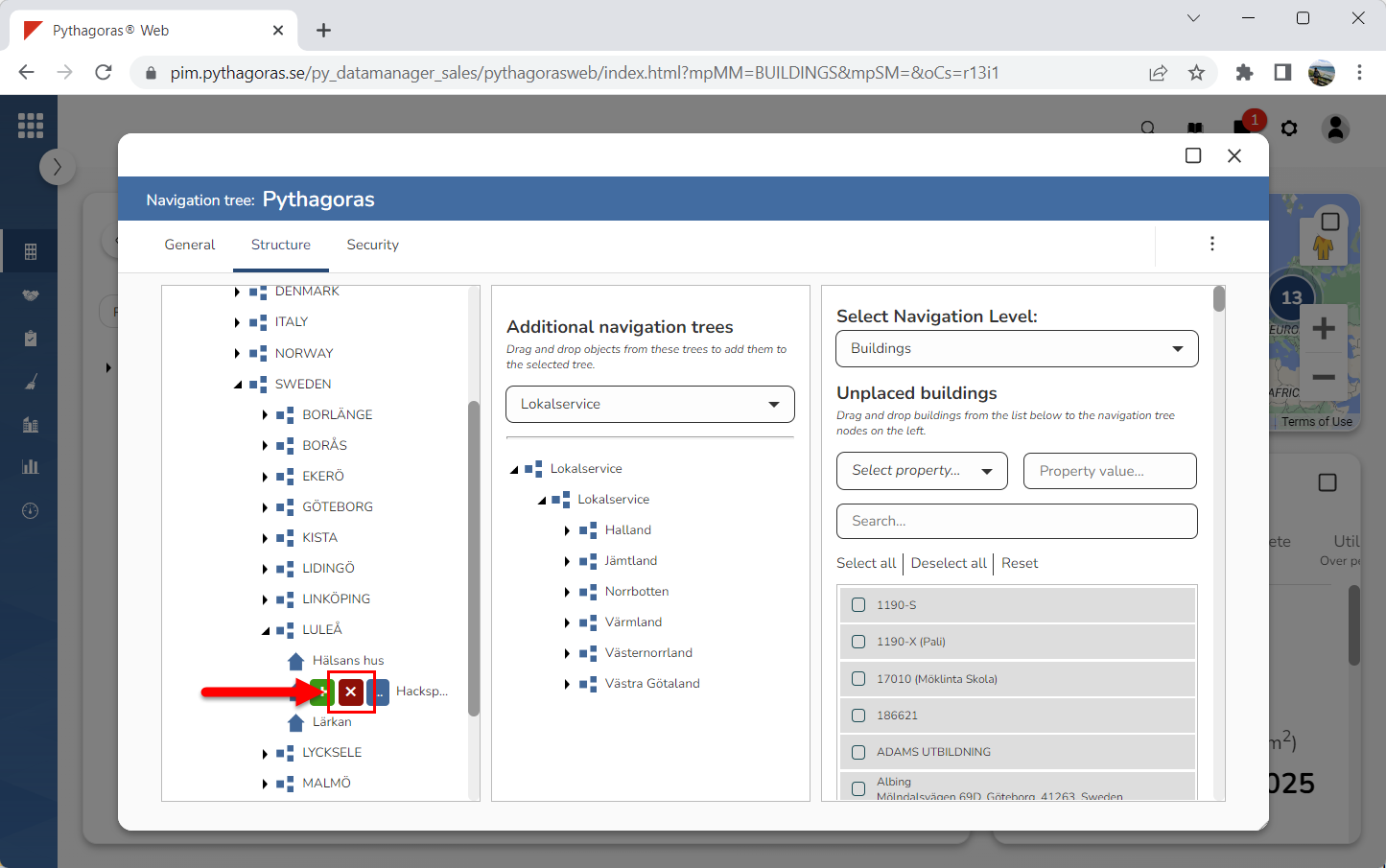

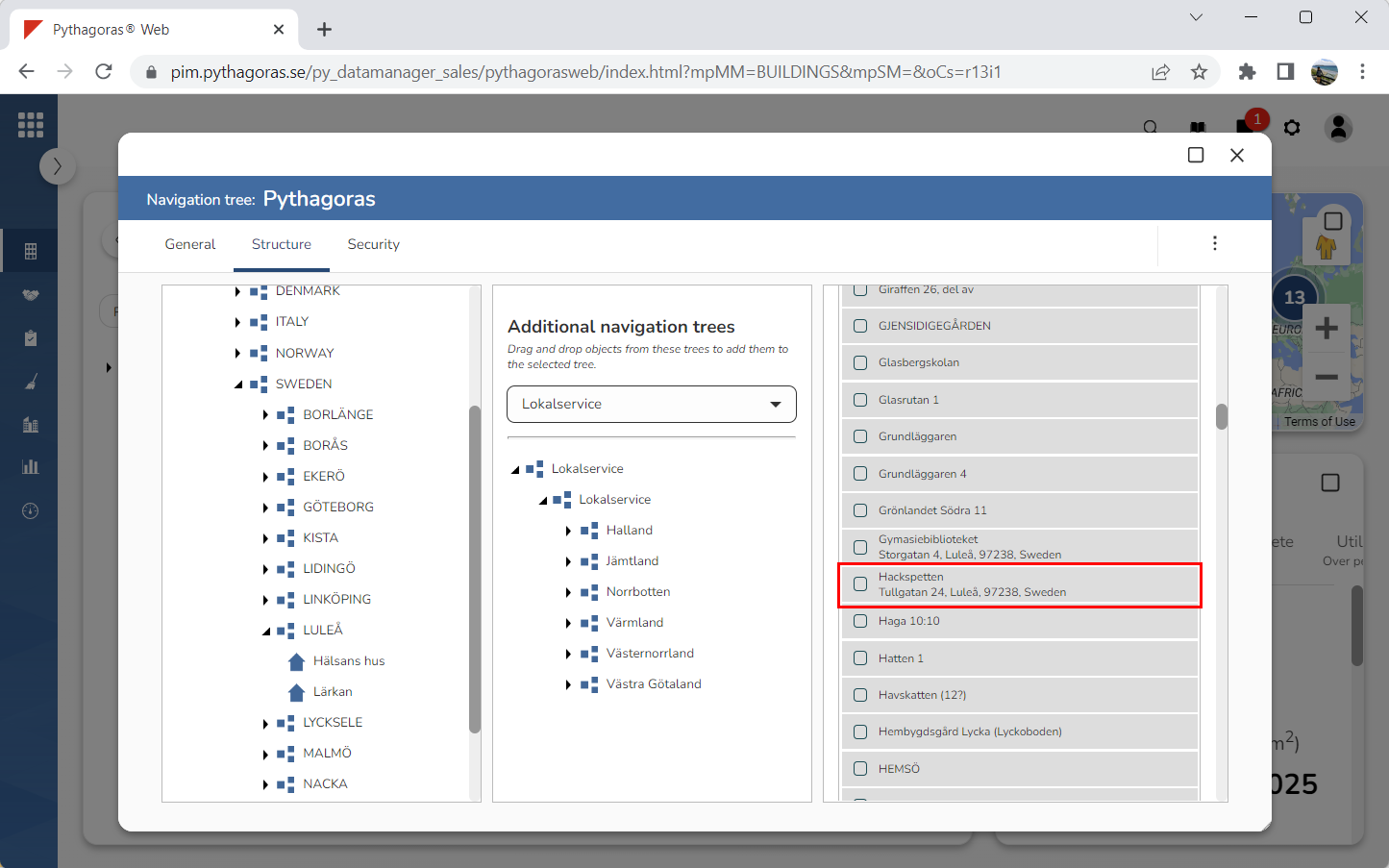

Click "Delete" (see the first image below). When you do so, the building you are working with will be removed from the navigation tree you are working with. Note that when a building is removed from a navigation tree, it will not be removed from Pythagoras Web but moved to a list of unplaced buildings (see the second image below). In order to access the list of unplaced buildings, go to the column called "Select Navigation Level", click the field "Select Navigation Level" and select "Buildings" in the list that opens.
8. Repeat the instructions in step 5-7 if you wish to remove another building from the navigation tree you are working with.
