When you use a land object to add an asset in Pythagoras Web, the asset you add in the application will be associated with the land object you are working with.
To add an asset in Pythagoras Web:
Open a land object. For more information on how to do so, see section 10.1.

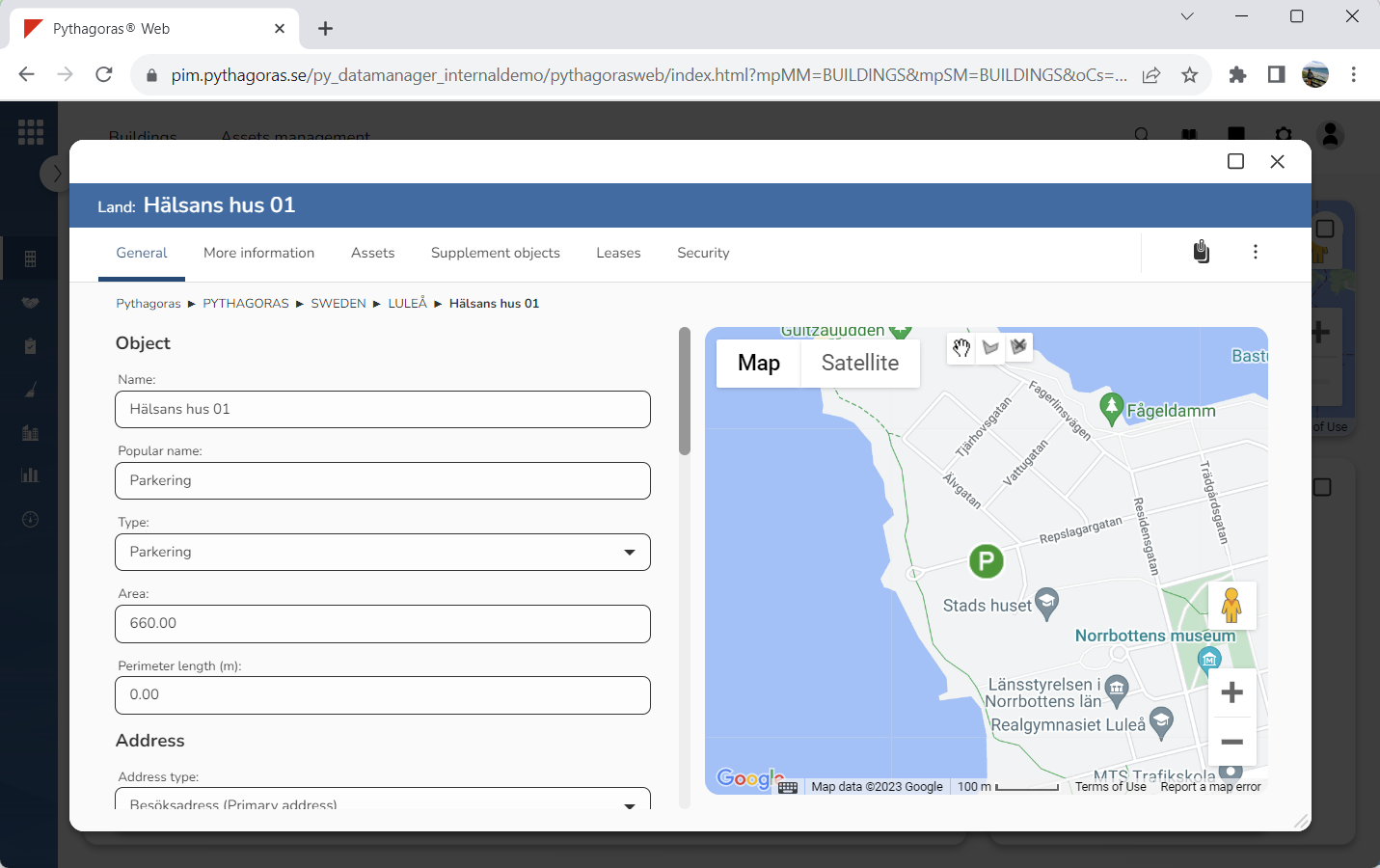

Go to the land card (see image below).

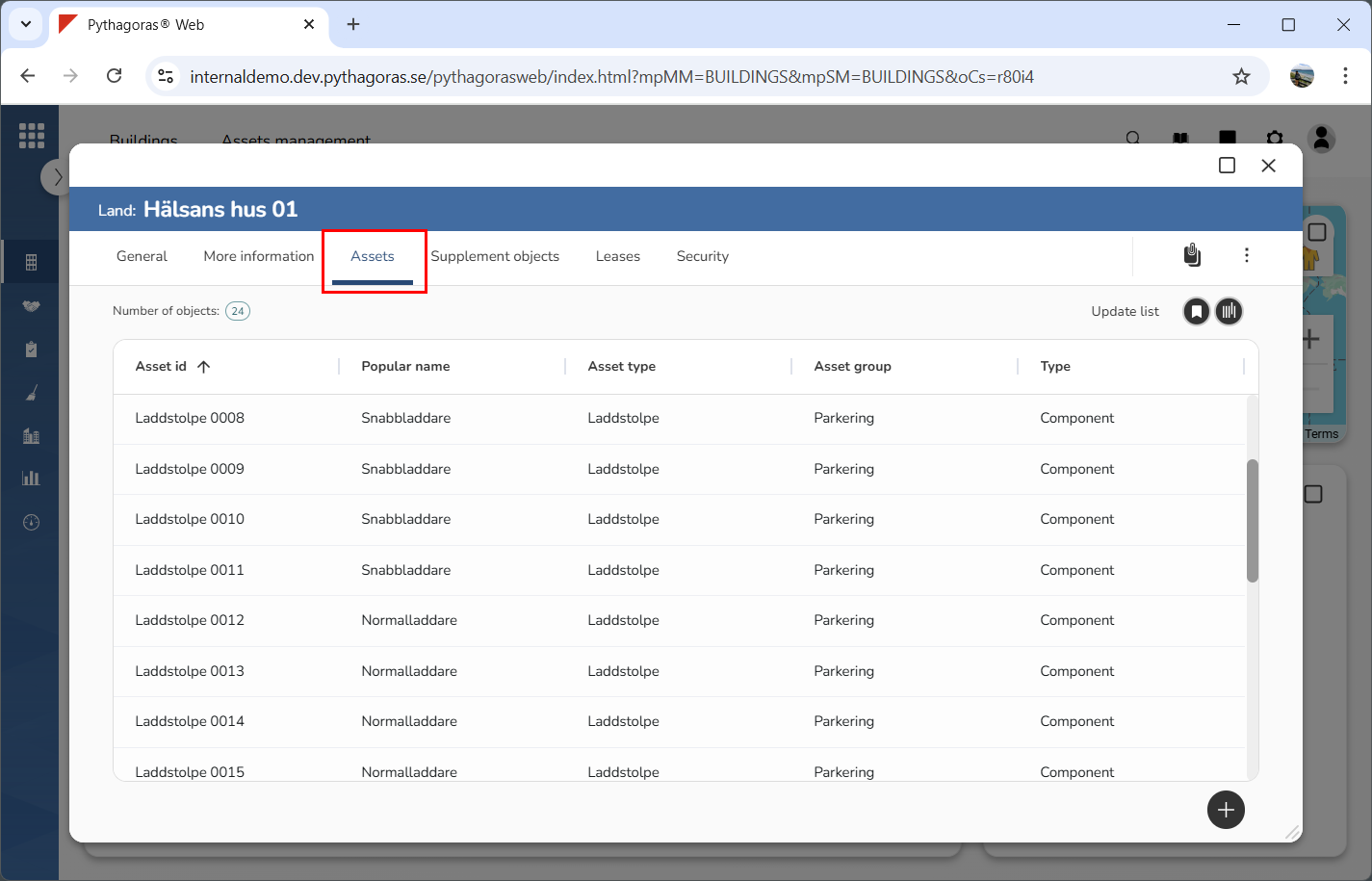

Click the tab called "Assets" (see image below). Within the tab called "Assets" you will find an assets list. In the assets list you will see which assets are associated with the land object you are working with.

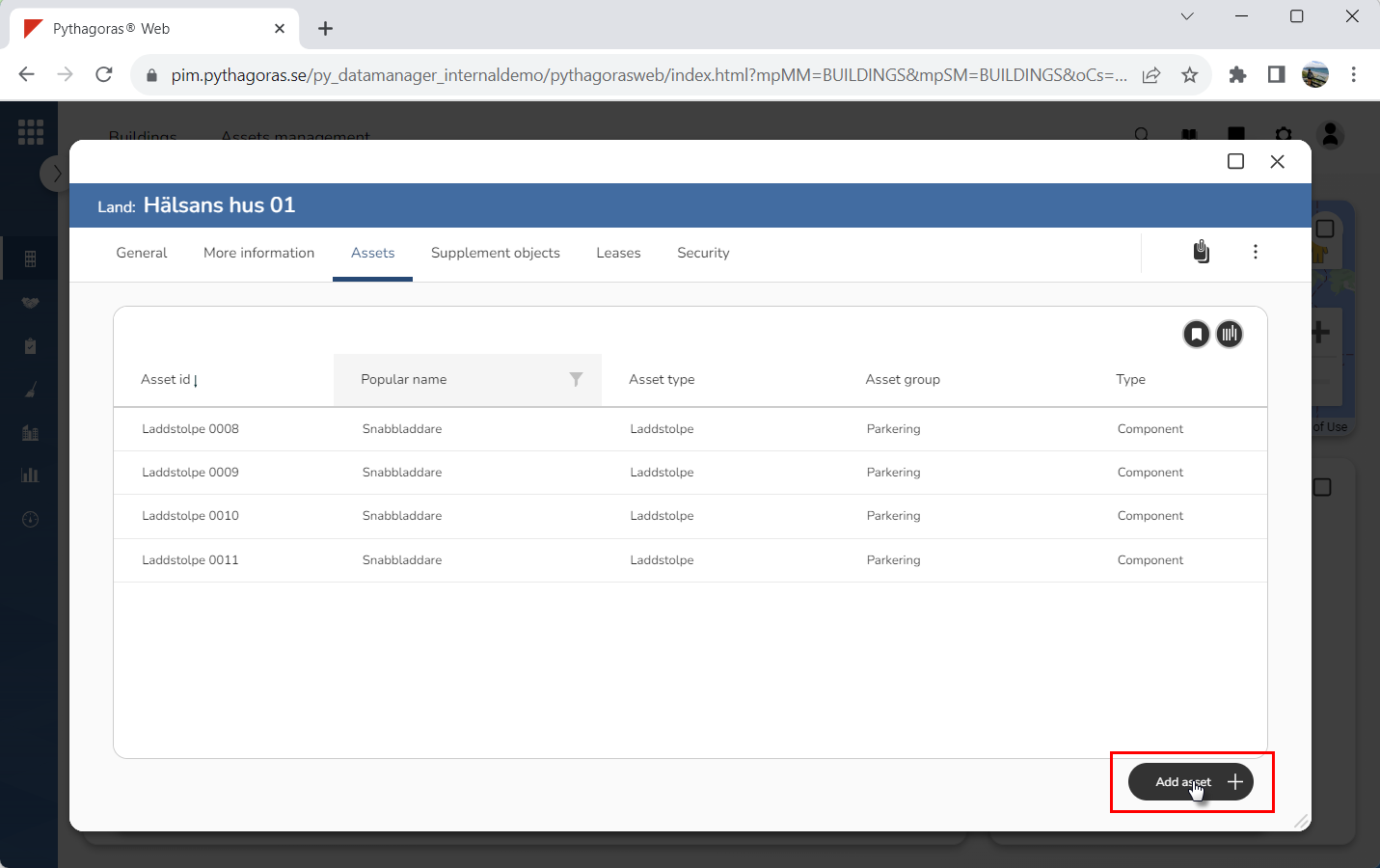

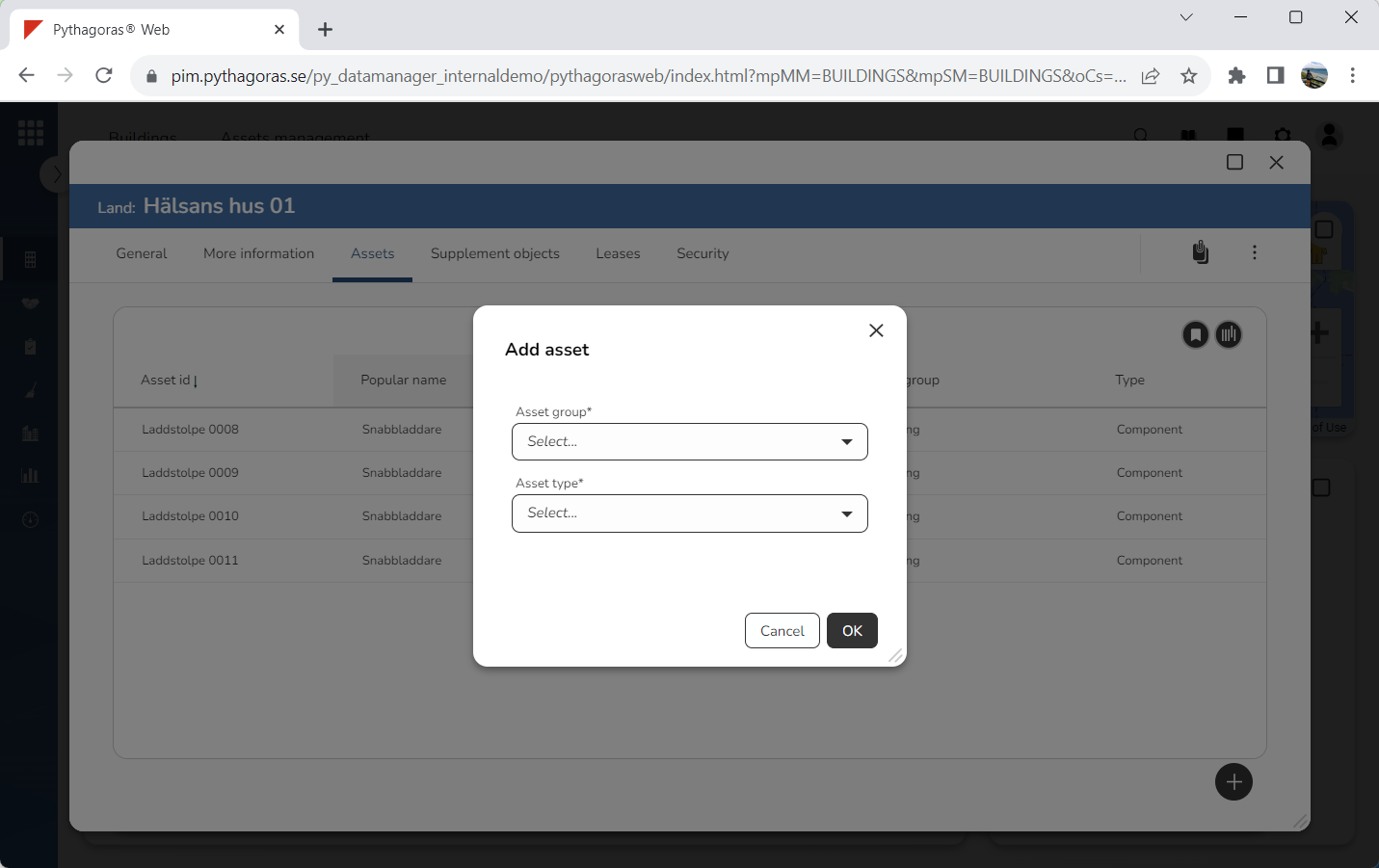

Click "Add asset" (see the first image below). When you do so, a window called "Add asset" will open (see the second image below).
Go to the window called "Add asset".
Specify to which asset group the asset you are adding in Pythagoras Web should belong (see image below). Click the field "Asset group". Then select an asset group in the list "Select asset group".

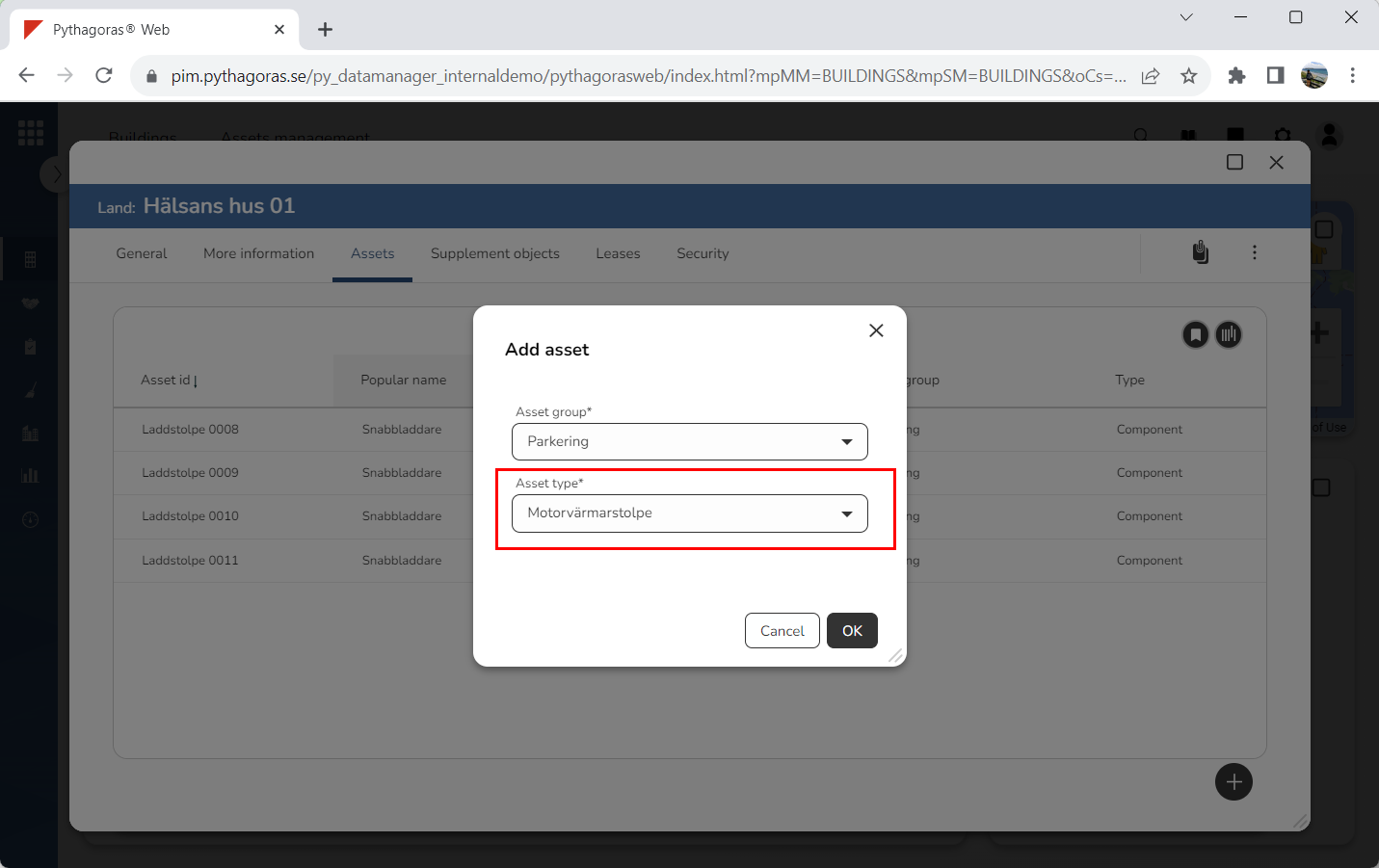

Specify which type of asset you wish to add in Pythagoras Web (see image below). Click the field "Asset type". Then select an asset type in the list "Select asset type".

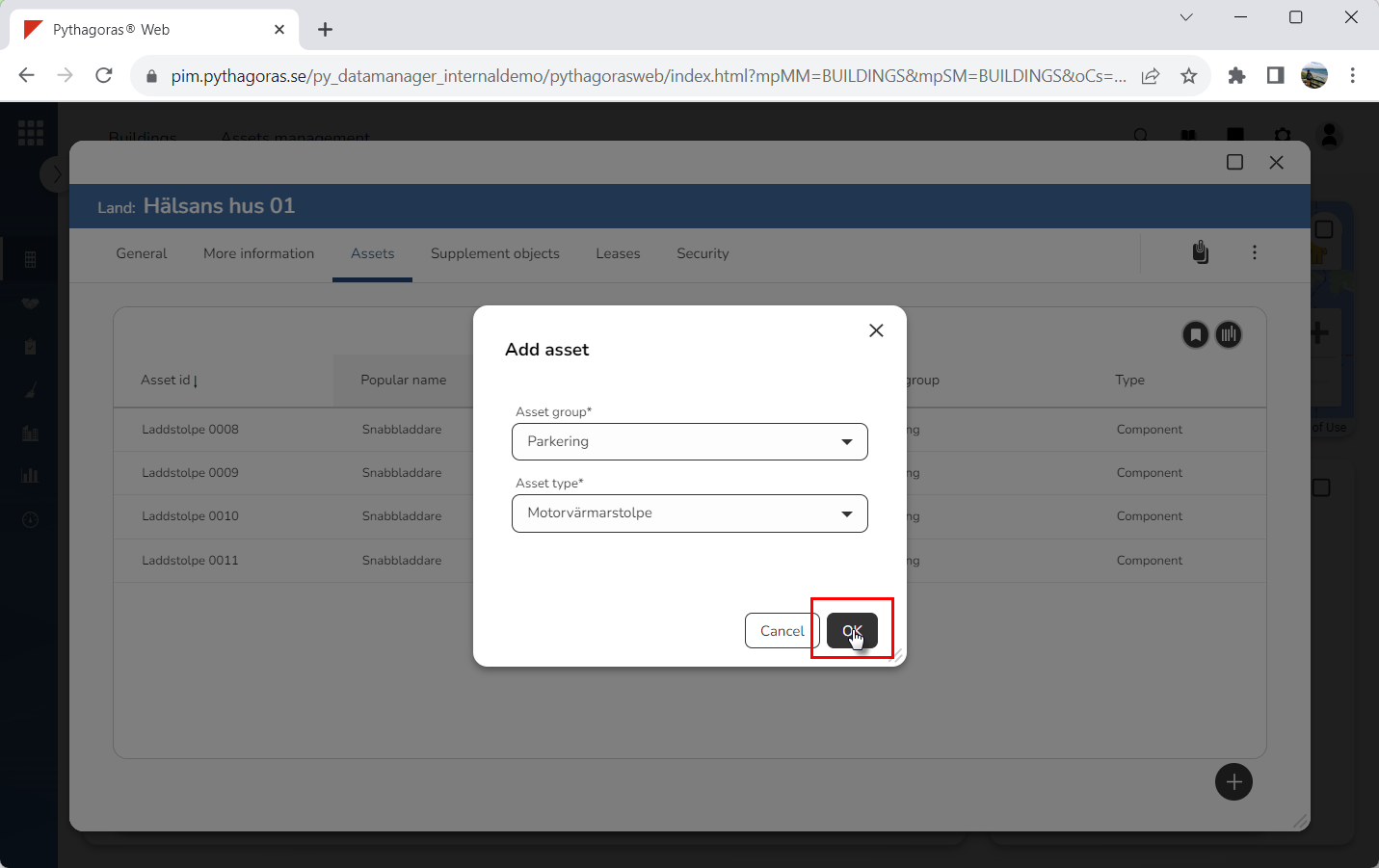

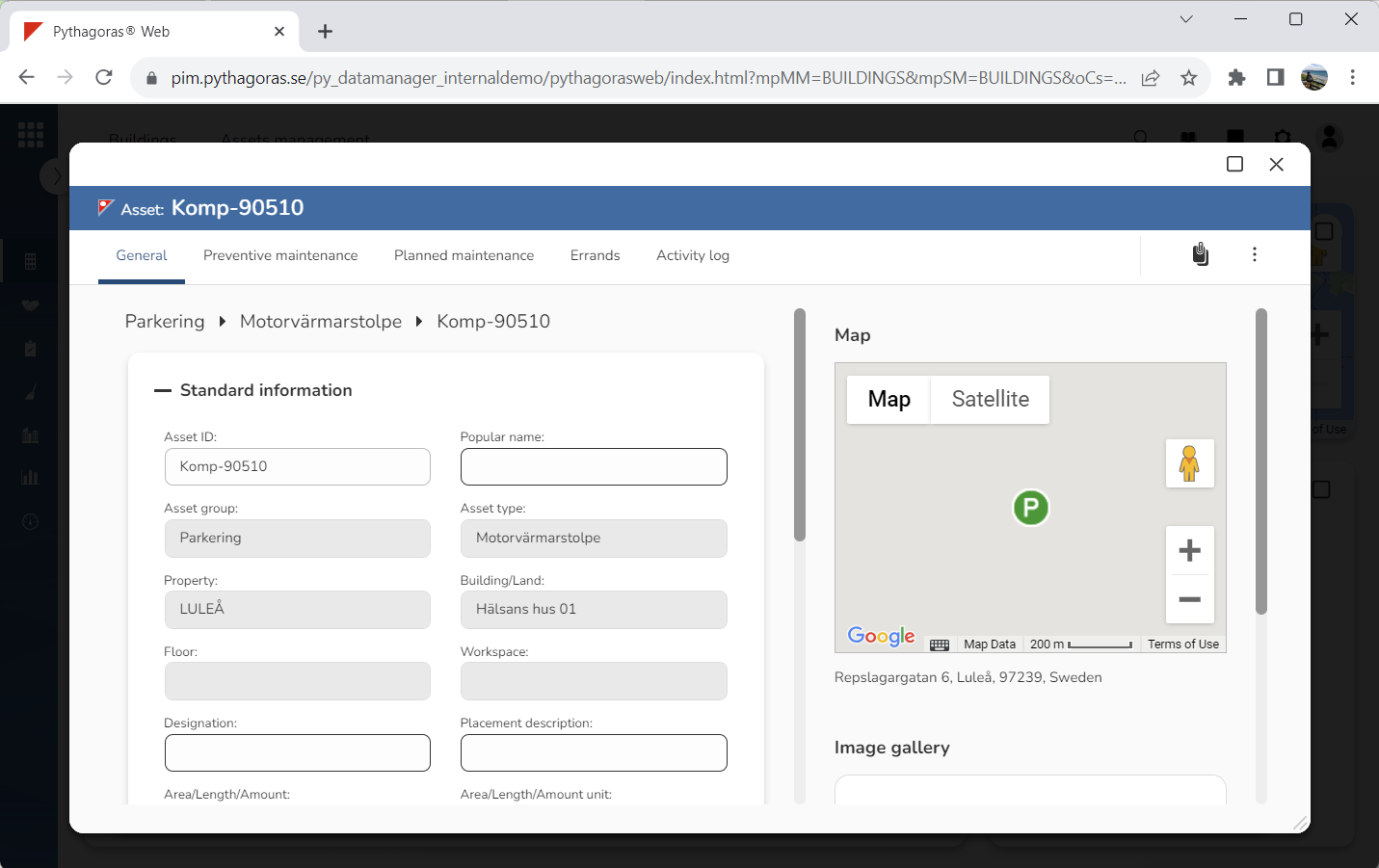

Click "OK" (see the first image below). When you do so, an asset associated with the land object you are working with will be added in Pythagoras Web. Once an asset has been added in Pythagoras Web, its asset card will open (see the second image below). Via the asset card you can work with an asset.
